AERATION SYSTEM - DISC DIFFUSER

Purifying Apparatus for Water & Wastewater

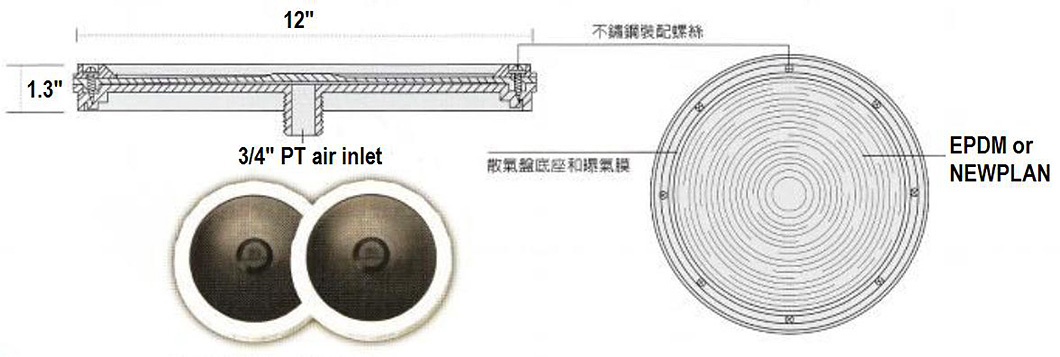

Structure

>> Membrane: Adopted the EPDM-NEWPLAN to melt. It can restrain the ageing effectively of the membrane, and protect the using life

>> Spreading hole: adopted the ^ shape for perforating to prevent adverse of waste water effectively and the bubble would be less than 0.3mm during aeration

>> Base: adopted the NYLON+A.BS. produced by hard plastics. It could prevent it out of shape

Scope of Application

>> Active the clean water

>> Place of dealing with wastewater

>> Promote the oxygen in lake and river

>> Promote the oxygen in lake and river

>> Stable the MLSS

Advantage

>> High oxygen transfer efficiency

>> Low pressure loss

>> High resistance to corrosion

>> Easy installation

>> Intermittent operation capability

>> Water-stirring effect

>> Self cleaning operation

>> Black flow preventation

>> Low flow to operation

>> Flexibility & durability

Specification

Model number Dimension Flow Range (LPM) Membrane Base Hardware
Disc-200 6" x 2.3" 20-100 EPDM-NEWPLAN FIBER + A.B.S. BOLTFIJED
Disc-250 10" x 2.3" 20-150 EPDM-NEWPLAN FIBER + A.B.S. BOLTFIJED
Disc-300 12" x 2.3" 20-280 EPDM-NEWPLAN FIBER + A.B.S. BOLTFIJED
Disc-350 13.5" x 2.3" 20-100 EPDM-NEWPLAN FIBER + A.B.S. BOLTFIJED
