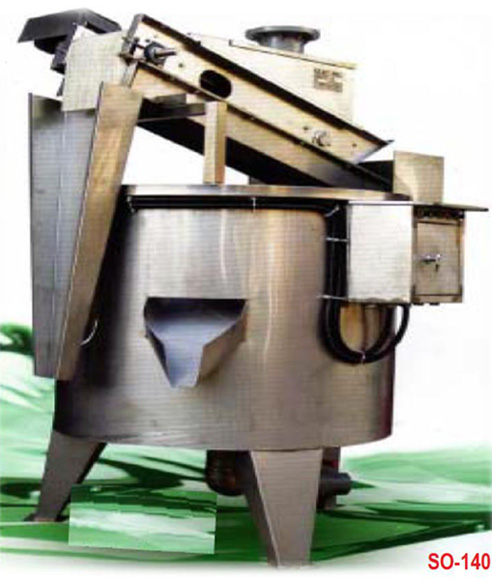

Solid & Grease Separator

for water and waste water

Specification          Specification subject to change without notice due to technical modifications

Dimension, mm TISO-970 TISO-1200 TISO-1400
a 1530 2000 2200
b 1100 1500 1700
c 970 1200 1400
d 600 600 600
e 775 950 1100
f 1000 1500 2760
g 1300 1950 3040
h 1680 2520 3800

Features

  • Vegetable residues, floating oil, soapy paste oil or stiff lump can be taken out respectively and simultaneously
  • Power consumption is 0.5 HP motor
  • Oil scraper is made by stainless steel (not by rubber), having long life and problem of rubber hardening is eliminated
